BD90C0AFPS-ME2

Technical Details

• Series:Automotive, AEC-Q100
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Discontinued at Digi-Key
• Output Configuration:Positive
• Output Type:Fixed
• Number of Regulators:1
• Voltage - Input (Max):26.5V
• Voltage - Output (Min/Fixed):9V
• Voltage - Output (Max):-
• Voltage Dropout (Max):0.5V @ 500mA

• Current - Output:1A
• Current - Quiescent (Iq):1 mA
• Current - Supply (Max):-
• PSRR:50dB (120Hz)
• Control Features:-
• Protection Features:Over Current, Over Temperature
• Operating Temperature:-40°C ~ 105°C (TA)
• Mounting Type:Surface Mount

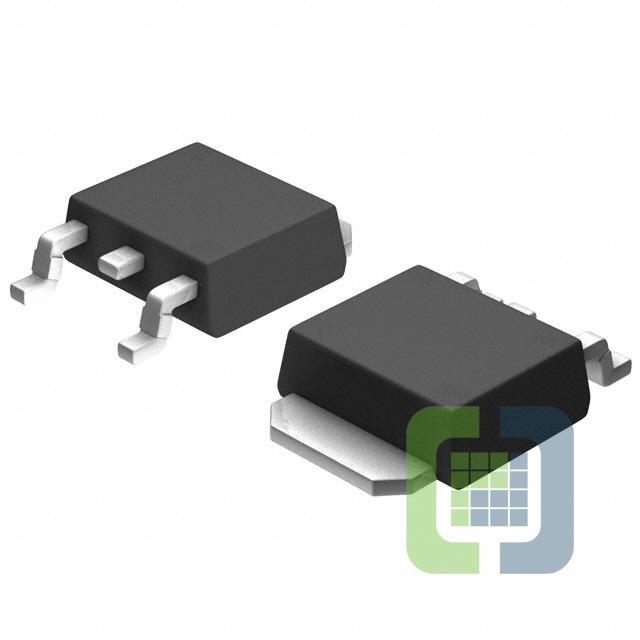

• Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
• Supplier Device Package:TO-252-3
