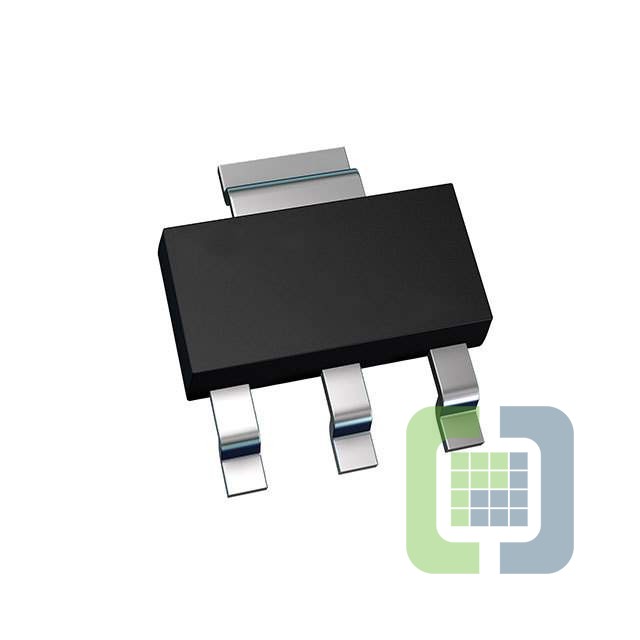

AP1117E50G-U
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 1A SOT223
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet AP1117E50G-U Datasheet
-
ECAD Model
- Share
In Stock: 131
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):18V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.4V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):10 mA
- Current - Supply (Max):-
- PSRR:60dB (180Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:0°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:TO-261-4, TO-261AA
- Supplier Device Package:SOT-223
