AP1186K5-L-13
Zetex Semiconductors (Diodes Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 1.5A TO263-5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet AP1186K5-L-13 Datasheet
-
ECAD Model
- Share
In Stock: 147
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):16V
- Voltage - Output (Min/Fixed):1.25V
- Voltage - Output (Max):15.5V
- Voltage Dropout (Max):0.38V @ 1.5A
- Current - Output:1.5A
- Current - Quiescent (Iq):10 mA
- Current - Supply (Max):150 µA
- PSRR:70dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:0°C ~ 150°C (TJ)
- Mounting Type:Surface Mount

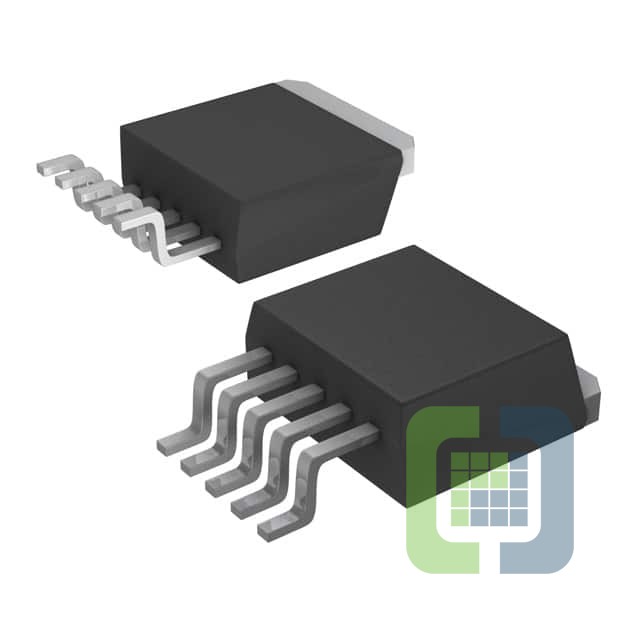

- Package / Case:TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
- Supplier Device Package:TO-263-5
