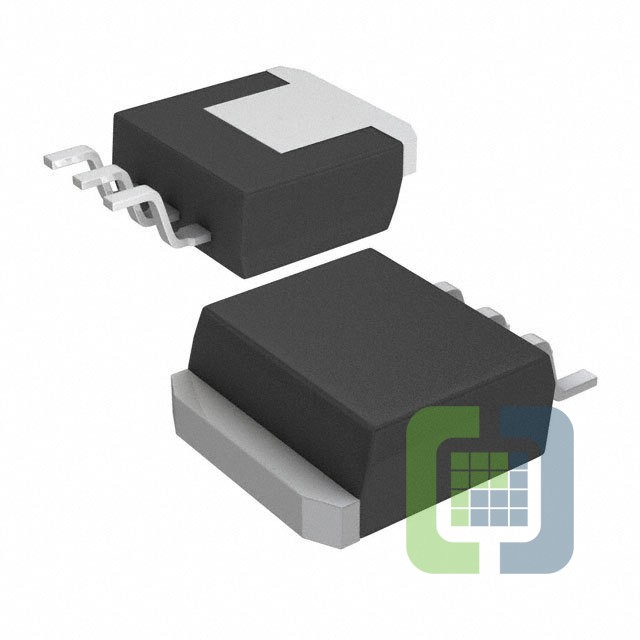

LM1086CSX-5.0/NOPB

Technical Details

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• Output Configuration:Positive
• Output Type:Fixed
• Number of Regulators:1
• Voltage - Input (Max):25V
• Voltage - Output (Min/Fixed):5V
• Voltage - Output (Max):-
• Voltage Dropout (Max):1.5V @ 1.5A

• Current - Output:1.5A
• Current - Quiescent (Iq):5 mA
• Current - Supply (Max):10 mA
• PSRR:68dB (120Hz)
• Control Features:-
• Protection Features:Over Current, Over Temperature, Short Circuit
• Operating Temperature:0°C ~ 125°C
• Mounting Type:Surface Mount
• Package / Case:TO-263-4, D²Pak (3 Leads + Tab), TO-263AA
• Supplier Device Package:DDPAK/TO-263-3
