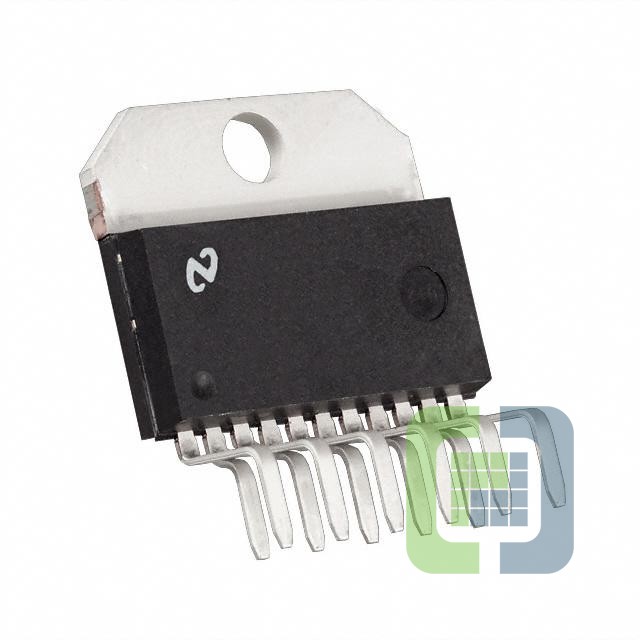

LM9073T/NOPB

Technical Details

• Series:-
• Package:Tube
• Part Status:Obsolete
• Output Configuration:Positive
• Output Type:Fixed
• Number of Regulators:2
• Voltage - Input (Max):27V
• Voltage - Output (Min/Fixed):5V
• Voltage - Output (Max):-
• Voltage Dropout (Max):1V @ 700mA

• Current - Output:700mA, 100mA
• Current - Quiescent (Iq):100 µA
• Current - Supply (Max):10 mA
• PSRR:40dB (20kHz)
• Control Features:Enable, Watchdog (RSTO)
• Protection Features:Over Temperature, Over Voltage, Short Circuit
• Operating Temperature:-40°C ~ 125°C
• Mounting Type:Through Hole
• Package / Case:TO-220-11 (Formed Leads)
• Supplier Device Package:TO-220-11
