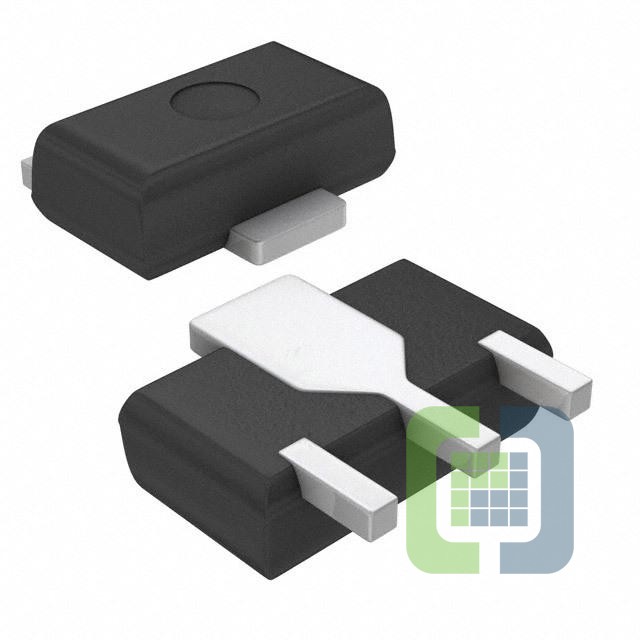

AN77L07M
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 7V 100MA 3HSIP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet AN77L07M Datasheet
-
ECAD Model
- Share
In Stock: 116
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):17.78V
- Voltage - Output (Min/Fixed):7V
- Voltage - Output (Max):-
- Voltage Dropout (Max):-
- Current - Output:100mA
- Current - Quiescent (Iq):5 mA
- Current - Supply (Max):-
- PSRR:65dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature, Short Circuit
- Operating Temperature:-30°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-243AA
- Supplier Device Package:3-HSIP
