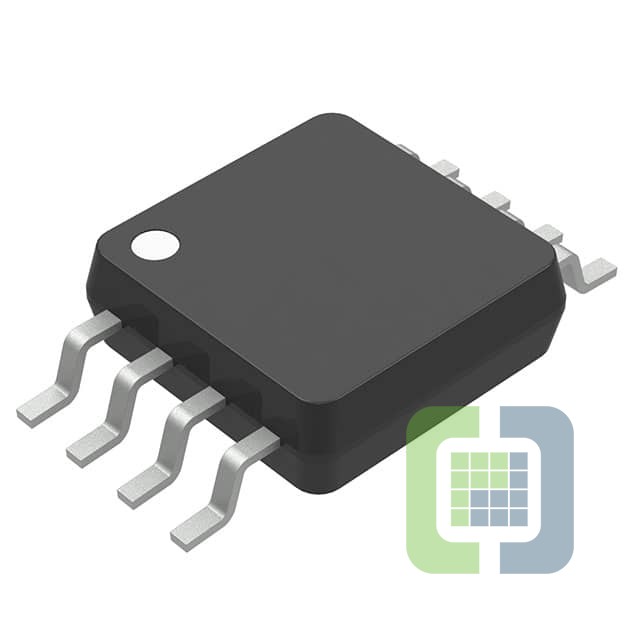

TC1306R-BDVUATR
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 1.8V/2.8V/3V 8MSOP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet TC1306R-BDVUATR Datasheet
-
ECAD Model
- Share
In Stock: 139
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Programmable
- Number of Regulators:2
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):1.8V, 2.8V, 3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.36V @ 150mA, 0.36V @ 150mA
- Current - Output:150mA, 150mA
- Current - Quiescent (Iq):200 µA
- Current - Supply (Max):-
- PSRR:55dB (120Hz)
- Control Features:Enable, Reset
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Supplier Device Package:8-MSOP
