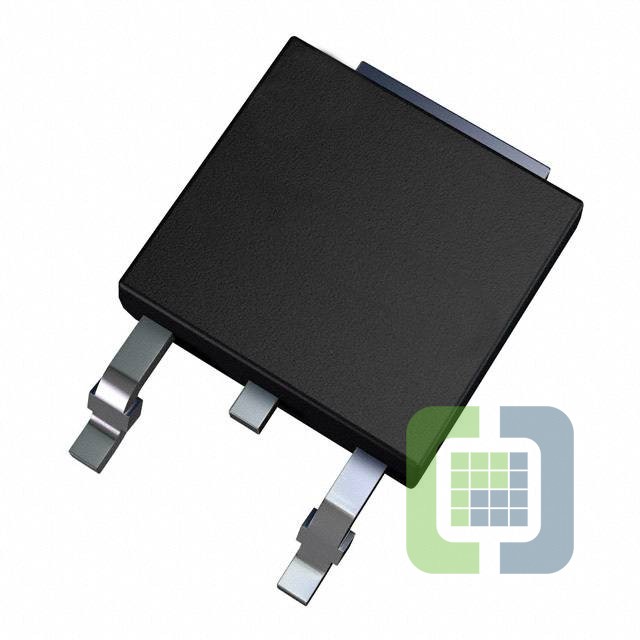

NJM78M05DL1ATE1
New Japan Radio (NJR)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 500MA TO252-3
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NJM78M05DL1ATE1 Datasheet
-
ECAD Model
- Share
In Stock: 101
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):35V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):-
- Current - Output:500mA
- Current - Quiescent (Iq):6 mA
- Current - Supply (Max):-
- PSRR:80dB (120Hz)
- Control Features:-
- Protection Features:Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
- Supplier Device Package:TO-252-3
