L7824CD2T

Technical Details

• Series:-
• Package:Tube
• Part Status:Obsolete
• Output Configuration:Positive
• Output Type:Fixed
• Number of Regulators:1
• Voltage - Input (Max):40V
• Voltage - Output (Min/Fixed):24V
• Voltage - Output (Max):-
• Voltage Dropout (Max):2V @ 1A (Typ)

• Current - Output:1.5A
• Current - Quiescent (Iq):8 mA
• Current - Supply (Max):-
• PSRR:50dB (120Hz)
• Control Features:-
• Protection Features:Over Temperature, Short Circuit
• Operating Temperature:0°C ~ 125°C
• Mounting Type:Surface Mount

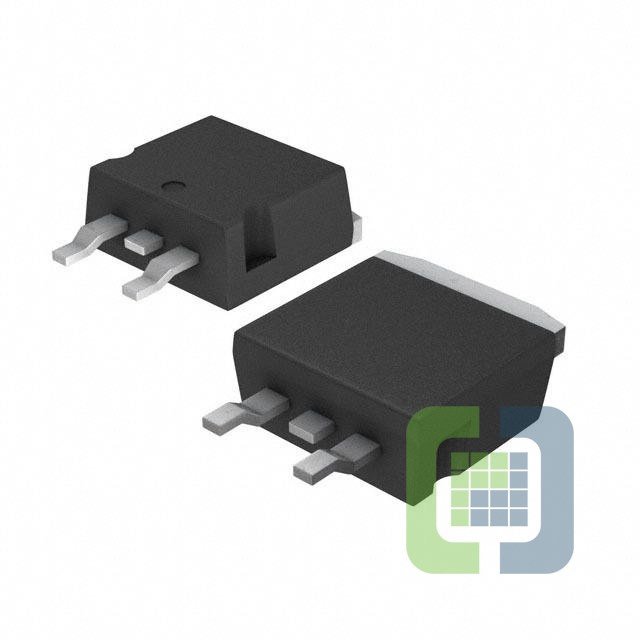

• Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
• Supplier Device Package:D2PAK
