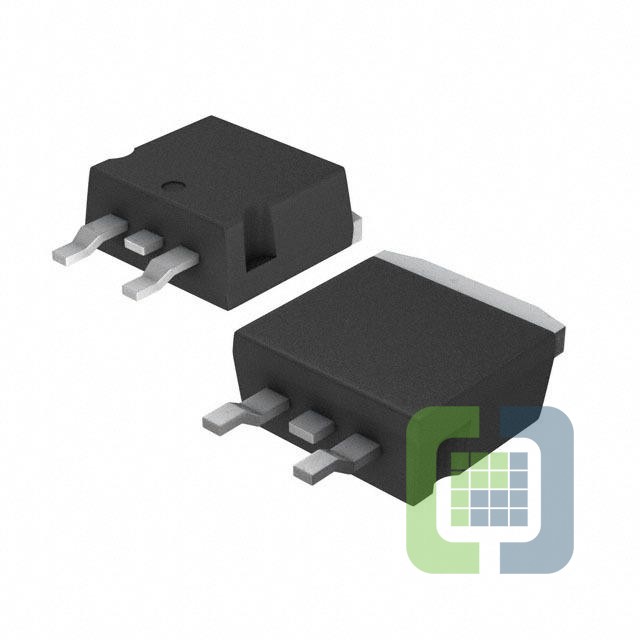

L4940D2T85-TR
STMicroelectronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 8.5V 1.5A D2PAK
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet L4940D2T85-TR Datasheet
-
ECAD Model
- Share
In Stock: 129
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):17V
- Voltage - Output (Min/Fixed):8.5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.9V @ 1.5A
- Current - Output:1.5A
- Current - Quiescent (Iq):8 mA
- Current - Supply (Max):50 mA
- PSRR:68dB (120Hz)
- Control Features:-
- Protection Features:Over Temperature, Reverse Polarity, Short Circuit
- Operating Temperature:-40°C ~ 150°C
- Mounting Type:Surface Mount
- Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package:D2PAK
