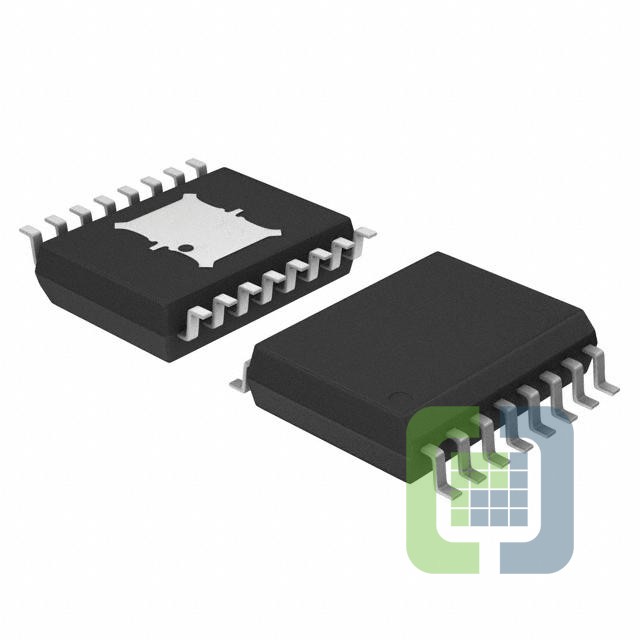

NCV8509PDW26R2
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V/2.6V 16SOIC
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCV8509PDW26R2 Datasheet
-
ECAD Model
- Share
In Stock: 137
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:2
- Voltage - Input (Max):50V
- Voltage - Output (Min/Fixed):5V, 2.6V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.6V @ 100mA, -
- Current - Output:115mA, 100mA
- Current - Quiescent (Iq):175 µA
- Current - Supply (Max):10 mA
- PSRR:-
- Control Features:Reset
- Protection Features:Over Temperature
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:16-SOIC (0.295", 7.50mm Width) Exposed Pad
- Supplier Device Package:16-SOIC
