CS8141YN14
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 500MA 14DIP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet CS8141YN14 Datasheet
-
ECAD Model
- Share
In Stock: 102
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):26V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.5V @ 500mA
- Current - Output:500mA
- Current - Quiescent (Iq):-
- Current - Supply (Max):-
- PSRR:75dB (120Hz)
- Control Features:Enable, Reset
- Protection Features:Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Through Hole

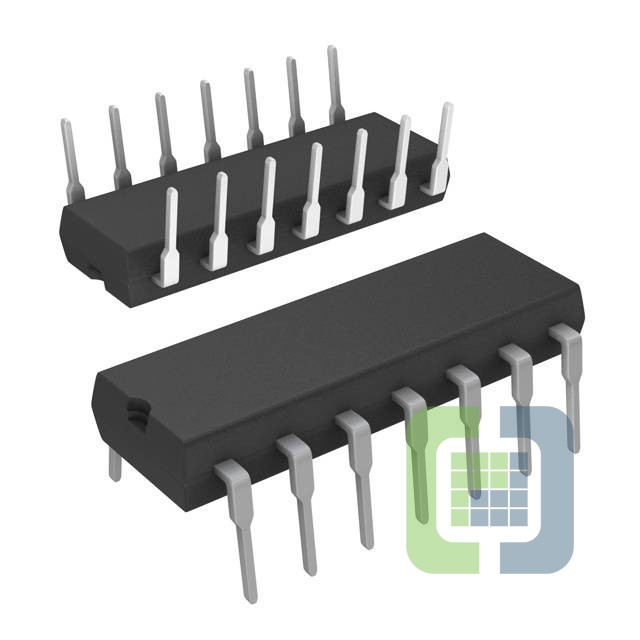

- Package / Case:14-DIP (0.300", 7.62mm)
- Supplier Device Package:14-PDIP
