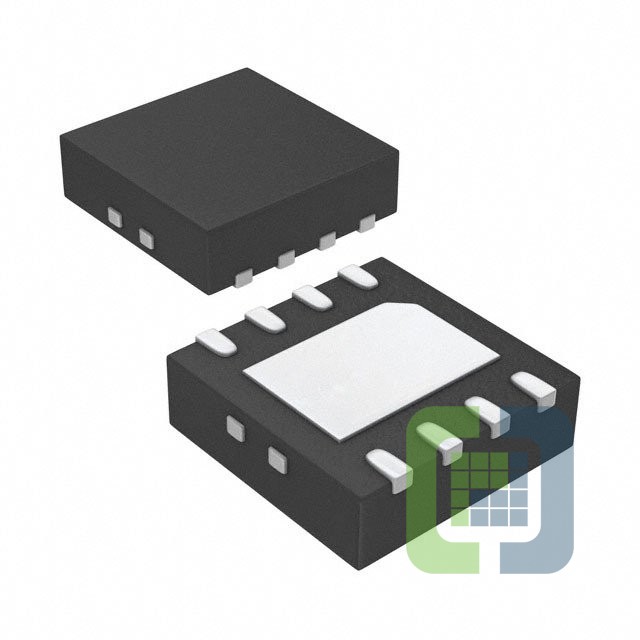

ST2L05R3325PS
STMicroelectronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN 2.5V/3.3V 1A/1A 8DFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet ST2L05R3325PS Datasheet
-
ECAD Model
- Share
In Stock: 192
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:2
- Voltage - Input (Max):7V
- Voltage - Output (Min/Fixed):2.5V, 3.3V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1.3V @ 1A, 1.3V @ 1A
- Current - Output:1A, 1A
- Current - Quiescent (Iq):7 mA
- Current - Supply (Max):-
- PSRR:60dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:0°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:8-VDFN Exposed Pad
- Supplier Device Package:8-DFN (5x6)
