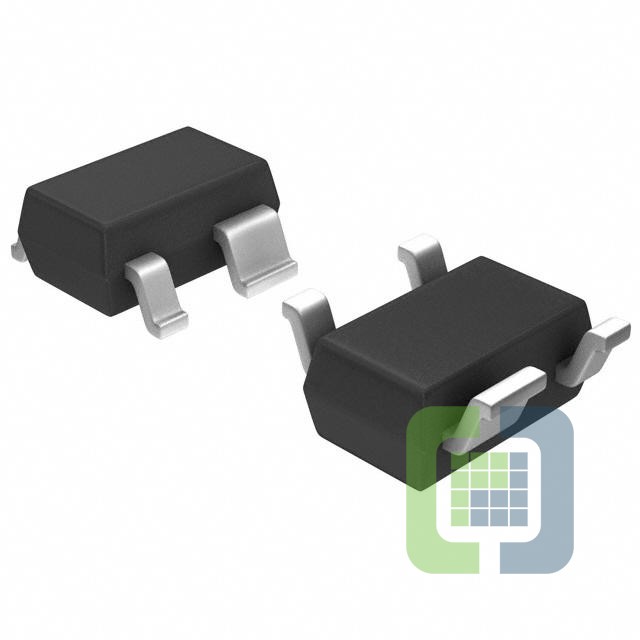

NCP580SQ25T1G
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 2.5V 120MA SC82AB
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCP580SQ25T1G Datasheet
-
ECAD Model
- Share
In Stock: 153
Can ship immediately
Pricing:
- 1$0.12
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):6V
- Voltage - Output (Min/Fixed):2.5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.35V @ 120mA
- Current - Output:120mA
- Current - Quiescent (Iq):160 µA
- Current - Supply (Max):-
- PSRR:70dB (1kHz)
- Control Features:Enable
- Protection Features:Over Current
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:SC-82A, SOT-343
- Supplier Device Package:SC-82AB
