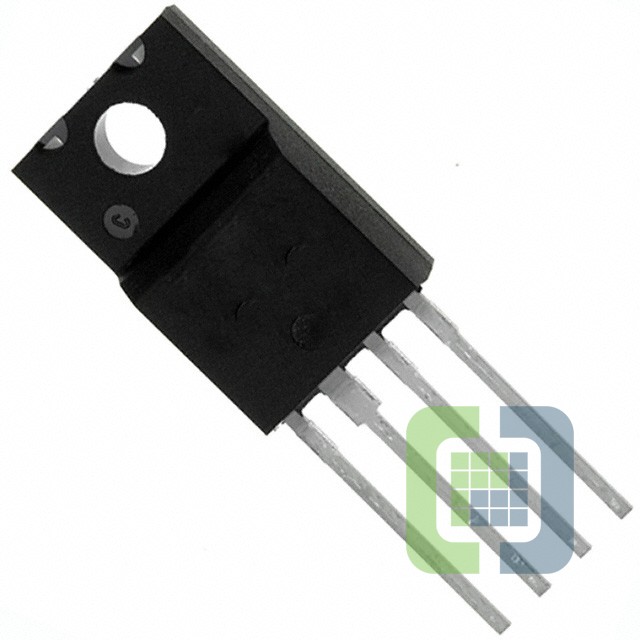

NJM2396F05
New Japan Radio (NJR)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 1.5A TO220F-4L
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NJM2396F05 Datasheet
-
ECAD Model
- Share
In Stock: 178
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):35V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.5V @ 500mA
- Current - Output:1.5A
- Current - Quiescent (Iq):-
- Current - Supply (Max):-
- PSRR:60dB (120Hz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature, Over Voltage
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Through Hole
- Package / Case:TO-220-4 Full Pack
- Supplier Device Package:TO-220F-4L
