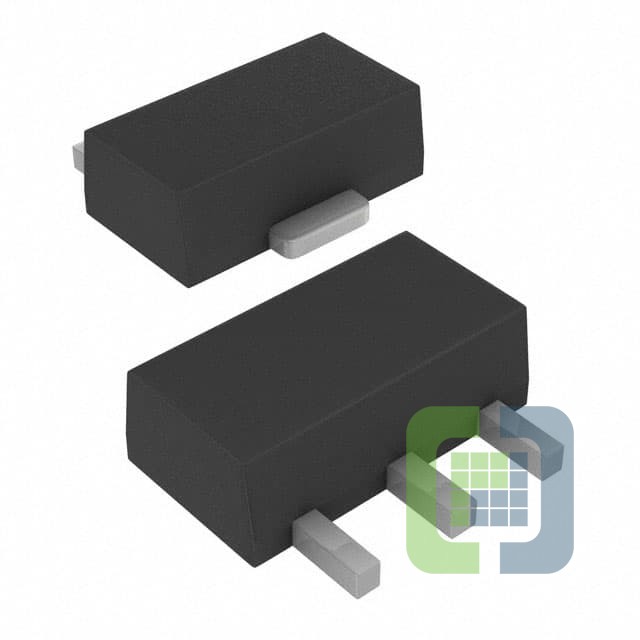

NJM78L15UA
New Japan Radio (NJR)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 15V 100MA SOT89
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NJM78L15UA Datasheet
-
ECAD Model
- Share
In Stock: 189
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):35V
- Voltage - Output (Min/Fixed):15V
- Voltage - Output (Max):-
- Voltage Dropout (Max):-
- Current - Output:100mA
- Current - Quiescent (Iq):6.5 mA
- Current - Supply (Max):-
- PSRR:60dB (120Hz)
- Control Features:-
- Protection Features:Over Temperature, Short Circuit
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:TO-243AA
- Supplier Device Package:SOT-89
