CS8156YT5G
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 12V/5V TO220-5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet CS8156YT5G Datasheet
-
ECAD Model
- Share
In Stock: 160
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:2
- Voltage - Input (Max):26V
- Voltage - Output (Min/Fixed):12V, 5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):1V @ 750mA, 0.6V @ 100mA
- Current - Output:750mA, 100mA
- Current - Quiescent (Iq):125 mA
- Current - Supply (Max):250 mA
- PSRR:70dB (120Hz)
- Control Features:Enable
- Protection Features:Over Temperature, Over Voltage, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Through Hole

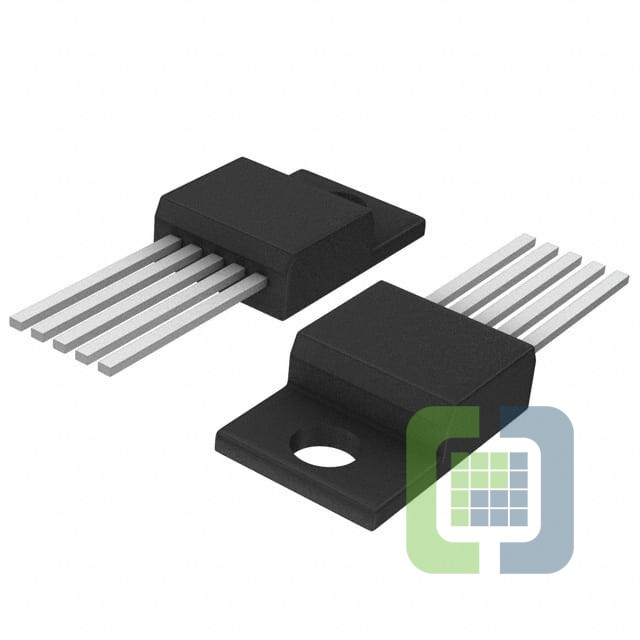

- Package / Case:TO-220-5
- Supplier Device Package:TO-220-5
