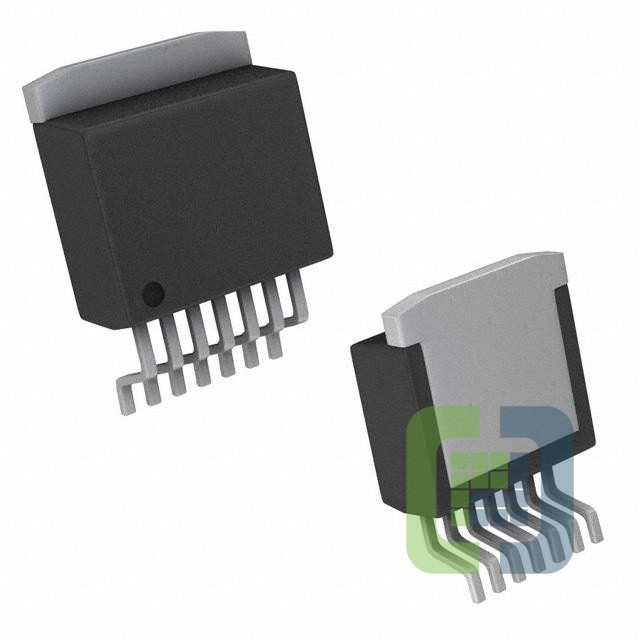

CS8361YDPS7
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN 5V 100MA/250MA D2PAK
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet CS8361YDPS7 Datasheet
-
ECAD Model
- Share
In Stock: 104
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:2
- Voltage - Input (Max):26V
- Voltage - Output (Min/Fixed):5V, Tracking
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.6V @ 100mA, 0.7V @ 250mA
- Current - Output:100mA, 250mA
- Current - Quiescent (Iq):200 µA
- Current - Supply (Max):50 mA
- PSRR:70dB (120Hz)
- Control Features:Enable, Reset
- Protection Features:Over Temperature, Over Voltage, Reverse Polarity, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
- Supplier Device Package:D2PAK-7
