NCV4276ADSADJG
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 400MA D2PAK-5
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCV4276ADSADJG Datasheet
-
ECAD Model
- Share
In Stock: 142
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tube
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):45V
- Voltage - Output (Min/Fixed):2.5V
- Voltage - Output (Max):20V
- Voltage Dropout (Max):0.5V @ 250mA
- Current - Output:400mA
- Current - Quiescent (Iq):200 µA
- Current - Supply (Max):35 mA
- PSRR:70dB (100Hz)
- Control Features:-
- Protection Features:Over Temperature, Reverse Polarity, Short Circuit
- Operating Temperature:-40°C ~ 150°C
- Mounting Type:Surface Mount

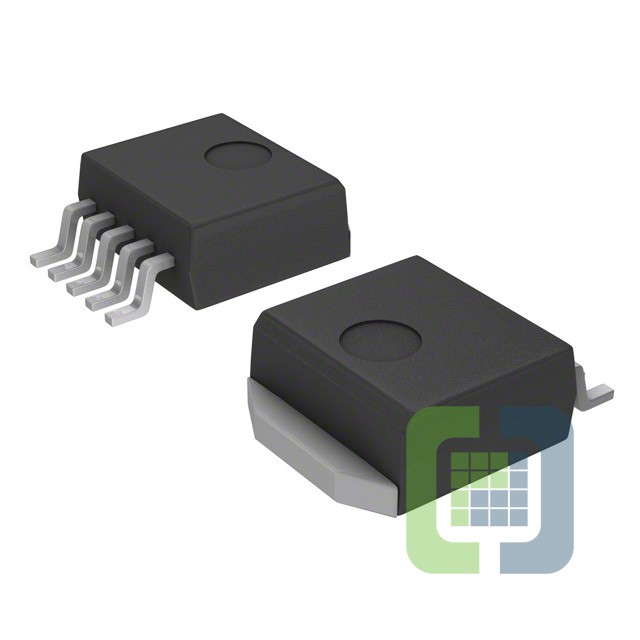

- Package / Case:TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
- Supplier Device Package:D2PAK-5
