NCV8502PDW50G
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 150MA 16SOIC
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCV8502PDW50G Datasheet
-
ECAD Model
- Share
In Stock: 194
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tube
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):45V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.6V @ 150mA
- Current - Output:150mA
- Current - Quiescent (Iq):125 µA
- Current - Supply (Max):19 mA
- PSRR:-
- Control Features:Enable, Reset
- Protection Features:Over Temperature, Reverse Polarity, Short Circuit
- Operating Temperature:-40°C ~ 150°C
- Mounting Type:Surface Mount

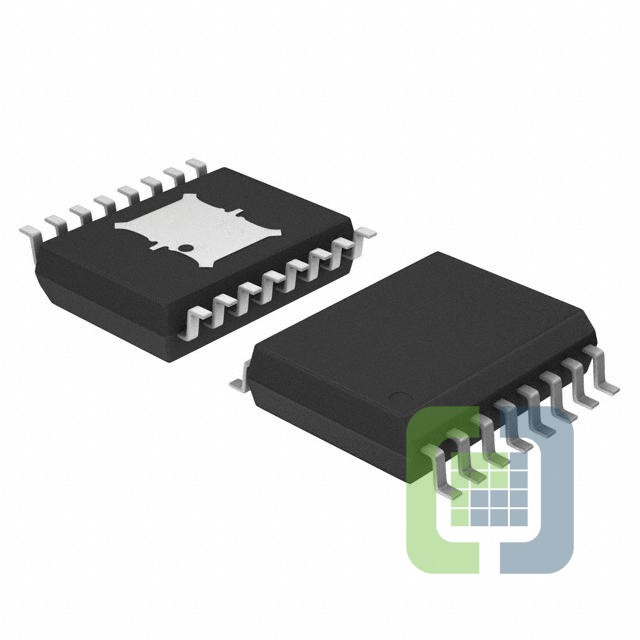

- Package / Case:16-SOIC (0.295", 7.50mm Width) Exposed Pad
- Supplier Device Package:16-SOIC
