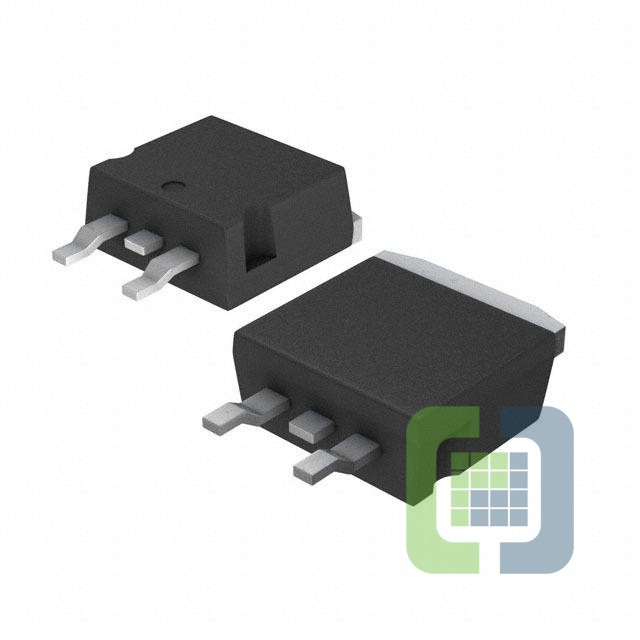

LD1117AD2MTR
STMicroelectronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR POS ADJ 1A D2PAK
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet LD1117AD2MTR Datasheet
-
ECAD Model
- Share
In Stock: 187
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Adjustable
- Number of Regulators:1
- Voltage - Input (Max):15V
- Voltage - Output (Min/Fixed):1.25V
- Voltage - Output (Max):15V
- Voltage Dropout (Max):1.3V @ 1A
- Current - Output:1A
- Current - Quiescent (Iq):5 mA
- Current - Supply (Max):-
- PSRR:80dB (120Hz)
- Control Features:-
- Protection Features:Over Current, Over Temperature
- Operating Temperature:0°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
- Supplier Device Package:D2PAK
