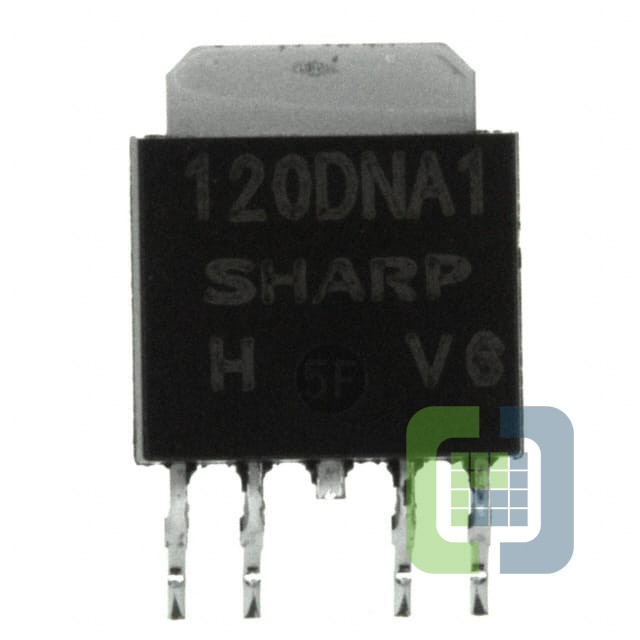

PQ120DNA1ZPH
Sharp Microelectronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 12V 1A SC63
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet PQ120DNA1ZPH Datasheet
-
ECAD Model
- Share
In Stock: 125
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):24V
- Voltage - Output (Min/Fixed):12V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.5V @ 500mA
- Current - Output:1A
- Current - Quiescent (Iq):8 mA
- Current - Supply (Max):-
- PSRR:60dB (120Hz)
- Control Features:Enable
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Surface Mount
- Package / Case:TO-252-5, DPak (4 Leads + Tab), TO-252AD
- Supplier Device Package:SC-63
