L4949ED

Technical Details

• Series:-
• Package:Tube
• Part Status:Obsolete
• Output Configuration:Positive
• Output Type:Fixed
• Number of Regulators:1
• Voltage - Input (Max):28V
• Voltage - Output (Min/Fixed):5V
• Voltage - Output (Max):-
• Voltage Dropout (Max):0.5V @ 100mA

• Current - Output:100mA
• Current - Quiescent (Iq):300 µA
• Current - Supply (Max):5 mA
• PSRR:-
• Control Features:Reset Output
• Protection Features:Over Temperature, Short Circuit
• Operating Temperature:-40°C ~ 125°C
• Mounting Type:Surface Mount

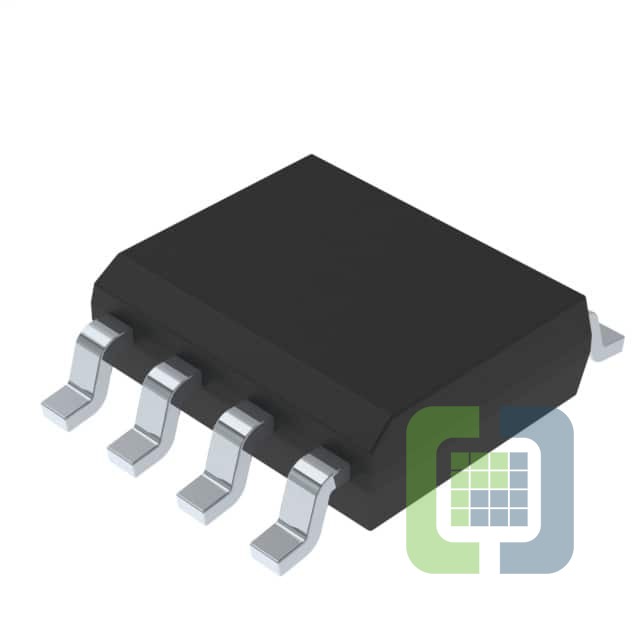

• Package / Case:8-SOIC (0.154", 3.90mm Width)
• Supplier Device Package:8-SO
