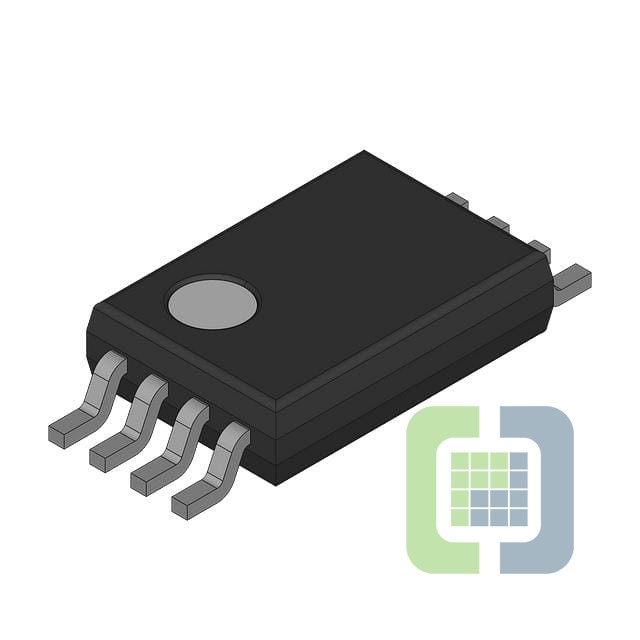

TPS7233QPWG4

Technical Details

• Series:-
• Package:Tube
• Part Status:Obsolete
• Output Configuration:Positive
• Output Type:Fixed
• Number of Regulators:1
• Voltage - Input (Max):10V
• Voltage - Output (Min/Fixed):3.3V
• Voltage - Output (Max):-
• Voltage Dropout (Max):1.1V @ 250mA

• Current - Output:250mA
• Current - Quiescent (Iq):225 µA
• Current - Supply (Max):325 µA
• PSRR:60dB ~ 50dB (120Hz)
• Control Features:Enable, Power Good
• Protection Features:Over Current, Over Temperature, Reverse Polarity
• Operating Temperature:-40°C ~ 125°C
• Mounting Type:Surface Mount
• Package / Case:8-TSSOP (0.173", 4.40mm Width)
• Supplier Device Package:8-TSSOP
