MAX15009ATN+T
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LIN POS ADJ 300MA 56TQFN
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet MAX15009ATN+T Datasheet
-
ECAD Model
- Share
In Stock: 168
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Adjustable (Fixed)
- Number of Regulators:1
- Voltage - Input (Max):40V
- Voltage - Output (Min/Fixed):1.8V, (5V)
- Voltage - Output (Max):11V
- Voltage Dropout (Max):1.5V @ 300mA
- Current - Output:300mA
- Current - Quiescent (Iq):85 µA
- Current - Supply (Max):500 µA
- PSRR:60dB (100Hz)
- Control Features:Current Limit, Enable, Hold, Reset
- Protection Features:Load Dump, Over Temperature, Over Voltage, Short Circuit
- Operating Temperature:-40°C ~ 125°C (TA)
- Mounting Type:Surface Mount

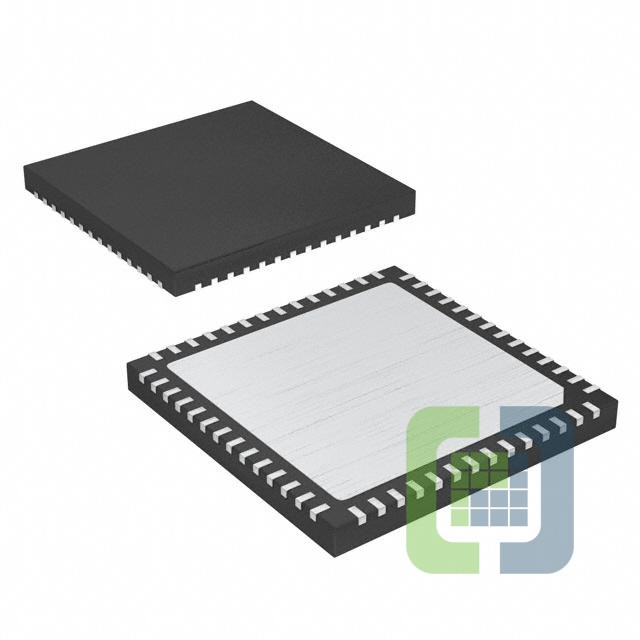

- Package / Case:56-WFQFN Exposed Pad
- Supplier Device Package:56-TQFN (8x8)
