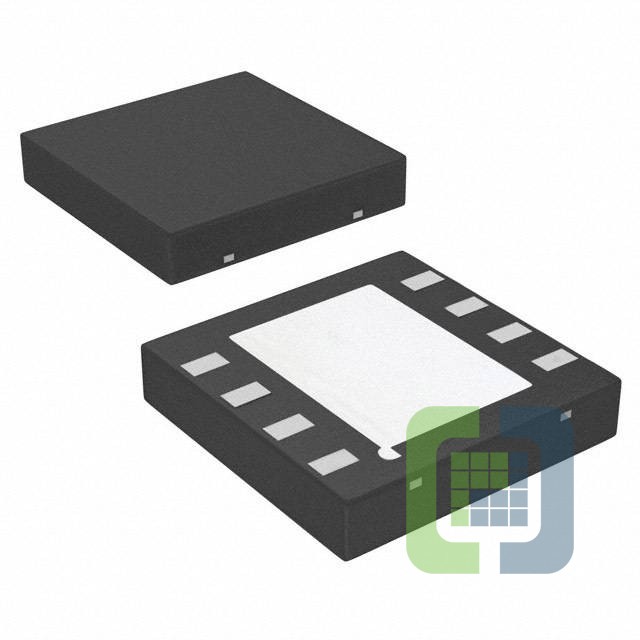

LM1117ILDX-ADJ/NOPB

Technical Details

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• Output Configuration:Positive
• Output Type:Adjustable
• Number of Regulators:1
• Voltage - Input (Max):15V
• Voltage - Output (Min/Fixed):1.25V
• Voltage - Output (Max):13.8V
• Voltage Dropout (Max):1.2V @ 800mA

• Current - Output:800mA
• Current - Quiescent (Iq):5 mA
• Current - Supply (Max):10 mA
• PSRR:75dB (120Hz)
• Control Features:-
• Protection Features:Over Current, Over Temperature
• Operating Temperature:-40°C ~ 125°C
• Mounting Type:Surface Mount
• Package / Case:8-WDFN Exposed Pad
• Supplier Device Package:8-WSON (4x4)
