LP3996SDX-2533/NOPB

Technical Details

• Series:-
• Package:Tape & Reel (TR)
• Part Status:Obsolete
• Output Configuration:Positive
• Output Type:Fixed
• Number of Regulators:2
• Voltage - Input (Max):6V
• Voltage - Output (Min/Fixed):2.5V, 3.3V
• Voltage - Output (Max):-
• Voltage Dropout (Max):0.22V @ 150mA, 0.55V @ 150mA

• Current - Output:150mA, 300mA
• Current - Quiescent (Iq):100 µA
• Current - Supply (Max):170 µA
• PSRR:58dB ~ 45dB, 70dB ~ 60dB (1kHz ~ 20kHz)
• Control Features:Enable
• Protection Features:Over Temperature, Short Circuit
• Operating Temperature:-40°C ~ 85°C
• Mounting Type:Surface Mount

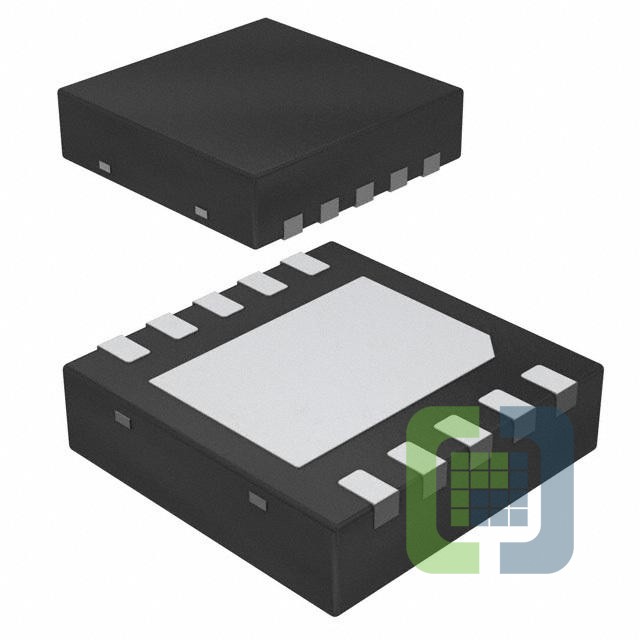

• Package / Case:10-WFDFN Exposed Pad
• Supplier Device Package:10-WSON (3x3)
