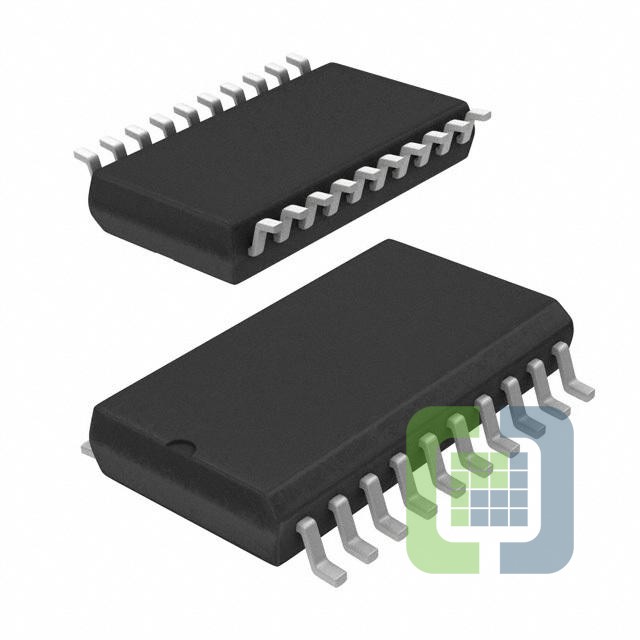

NCV4269DWR2G
ON Semiconductor
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 5V 150MA 20SOIC
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet NCV4269DWR2G Datasheet
-
ECAD Model
- Share
In Stock: 149
Can ship immediately
Pricing:
- 1$0.77
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:1
- Voltage - Input (Max):45V
- Voltage - Output (Min/Fixed):5V
- Voltage - Output (Max):-
- Voltage Dropout (Max):0.5V @ 100mA
- Current - Output:150mA
- Current - Quiescent (Iq):250 µA
- Current - Supply (Max):3 mA
- PSRR:-
- Control Features:Reset
- Protection Features:Over Temperature, Reverse Polarity, Short Circuit
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Package / Case:20-SOIC (0.295", 7.50mm Width)
- Supplier Device Package:20-SOIC
