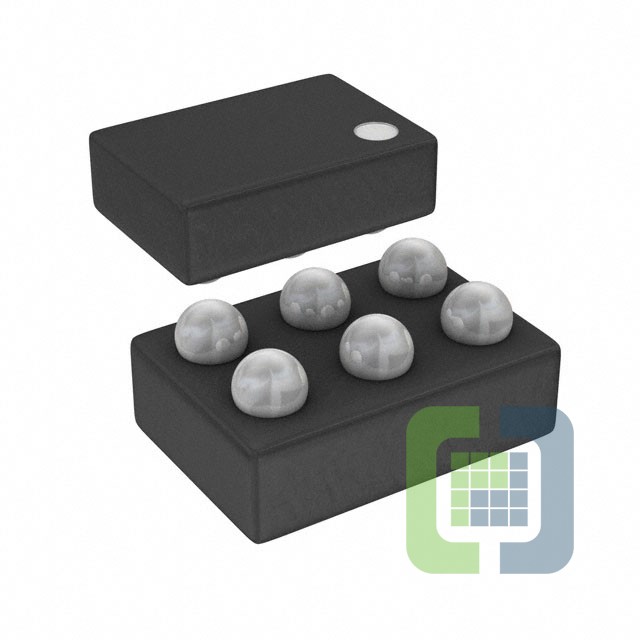

ADP220ACBZ-2623R7
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC REG LINEAR 2.3V/2.6V 6WLCSP
- CategoryPMIC - Voltage Regulators - Linear
- Datasheet ADP220ACBZ-2623R7 Datasheet
-
ECAD Model
- Share
In Stock: 174
Can ship immediately
Pricing:
- 1$0.8
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Output Configuration:Positive
- Output Type:Fixed
- Number of Regulators:2
- Voltage - Input (Max):5.5V
- Voltage - Output (Min/Fixed):2.3V, 2.6V
- Voltage - Output (Max):-
- Voltage Dropout (Max):-, 0.23V @ 200mA
- Current - Output:200mA
- Current - Quiescent (Iq):120 µA
- Current - Supply (Max):220 µA
- PSRR:-
- Control Features:Enable
- Protection Features:Over Current, Over Temperature
- Operating Temperature:-40°C ~ 125°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:6-WFBGA, WLCSP
- Supplier Device Package:6-WLCSP (1.45x0.95)
