1983150000

Weidmuller
In Stock: 196

Can ship immediately

Pricing:
  • 1$9.15
  • 10$7.83822
  • 30$7.48052
  • 60$6.72449
  • 120$6.36635
  • 270$5.76953
  • 510$5.37164
  • 1,020$5.07321

Quote It

Technical Details

  • Series:Omnimate BL
  • Package:Box
  • Part Status:Active
  • Type:Plug, Female Sockets
  • Number of Positions:9
  • Positions Per Level:9
  • Number of Levels:1
  • Pitch:0.200" (5.08mm)
  • Header Orientation:-
  • Plug Wire Entry:270°
  • Termination Style:Screwless - Leg Spring, Push-In Spring



  • Mounting Type:Free Hanging (In-Line)
  • Current - IEC:24A
  • Voltage - IEC:400 V
  • Current - UL:18.5 A
  • Voltage - UL:300 V
  • Wire Gauge or Range - AWG:12-26 AWG
  • Wire Gauge or Range - mm²:0.2-2.5mm²
  • Color:Orange
  • Operating Temperature:-50°C ~ 100°C
  • Contact Mating Finish:Tin
  • Features:Ejector Latches, Retention Latches (Non-Wire Side)

Related Products


1013160000

TERM BLOCK PLUG 9POS STR 5.08MM

1013160000 Datasheet
  • 1: $9.15000
  • 10: $7.83822
  • 30: $7.48052

1016420000

TERM BLOCK PLUG 9POS STR 5MM

1016420000 Datasheet
  • 1: $9.15000
  • 10: $7.83822
  • 30: $7.48052

1873252

TERM BLOCK PLUG 7POS STR 5.08MM

1873252 Datasheet
  • 1: $9.20000
  • 10: $8.95273
  • 50: $8.36709

1060570000

TERM BLOCK PLUG 3POS STR 7.62MM

  • 1: $9.24000
  • 10: $7.91103
  • 25: $7.54980

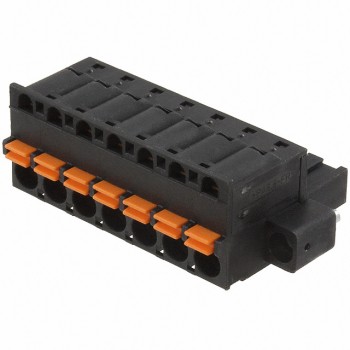

1911680

TERM BLOCK PLUG 7POS STR 5.08MM

1911680 Datasheet
  • 1: $9.27000
  • 10: $9.02200
  • 50: $8.43160

1235980000

TERM BLOCK PLUG 6POS STR 3.81MM

  • 1: $9.31000
  • 10: $7.97208
  • 25: $7.60742

1971940000

TERM BLOCK PLUG 12POS STR 3.81MM

  • 1: $9.31000
  • 10: $7.97208
  • 25: $7.60742

1717138

TERM BLOCK HEADER HYBRID 4+6POS

  • 1: $9.32000

1861302

CONN TERM BLOCK PLUG 9POS 5.08MM

1861302 Datasheet
  • 1: $9.37000
  • 10: $8.96300
  • 50: $8.71840

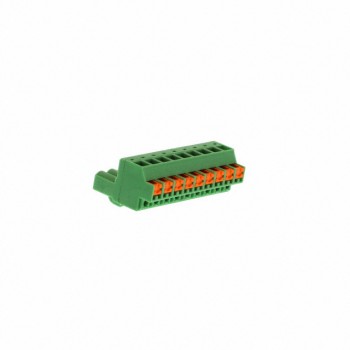

1860617
