1975639
Phoenix Contact
- Lifecycle status Active
- RoHS RoHS Compliant

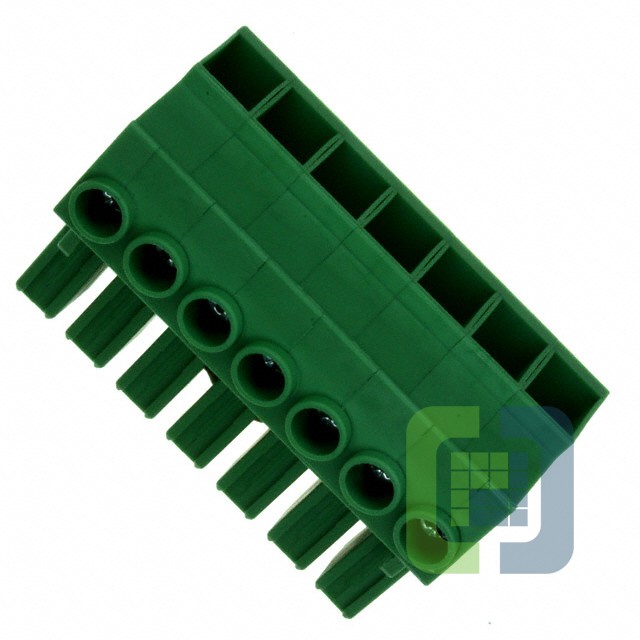

- DescriptionTERM BLOCK PLUG 7POS STR 7.62MM
- CategoryTerminal Blocks - Headers, Plugs and Sockets
- Datasheet 1975639 Datasheet
-
ECAD Model
- Share
In Stock: 170
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:COMBICON PC
- Package:Bulk
- Part Status:Active
- Type:Plug, Female Sockets
- Number of Positions:7
- Positions Per Level:7
- Number of Levels:1
- Pitch:0.300" (7.62mm)
- Header Orientation:-
- Plug Wire Entry:180°
- Termination Style:Screw - Rising Cage Clamp
- Mounting Type:Free Hanging (In-Line)
- Current - IEC:41A
- Voltage - IEC:1 kV
- Current - UL:41 A
- Voltage - UL:600 V
- Wire Gauge or Range - AWG:8-24 AWG
- Wire Gauge or Range - mm²:0.2-10mm²
- Color:Green
- Operating Temperature:-
- Contact Mating Finish:Tin
- Features:Retention Latches (Non-Wire Side)
