796867-5
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant

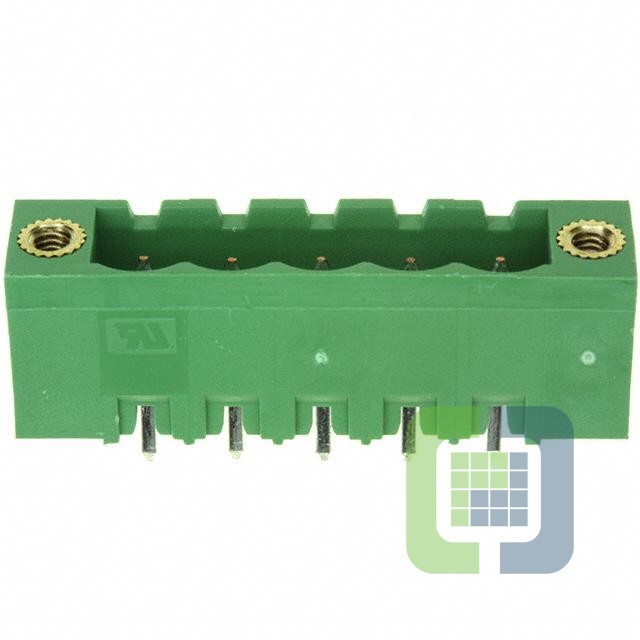

- DescriptionTERM BLOCK HDR 5POS VERT 5.08MM
- CategoryTerminal Blocks - Headers, Plugs and Sockets
- Datasheet 796867-5 Datasheet
-
ECAD Model
- Share
In Stock: 178
Can ship immediately
Pricing:
- 1$8.96
- 10$7.064
- 25$6.7196
- 50$6.0992
- 100$5.858
- 250$5.16888
- 500$4.82428
- 1,000$4.47968
Quote It
Technical Details
- Series:Buchanan
- Package:Bulk
- Part Status:Discontinued at Digi-Key
- Type:Header, Male Pins, Shrouded (4 Side)
- Number of Positions:5
- Positions Per Level:5
- Number of Levels:1
- Pitch:0.200" (5.08mm)
- Header Orientation:Vertical
- Plug Wire Entry:-
- Termination Style:Solder
- Mounting Type:Through Hole
- Current - IEC:-
- Voltage - IEC:-
- Current - UL:15 A
- Voltage - UL:300 V
- Wire Gauge or Range - AWG:-
- Wire Gauge or Range - mm²:-
- Color:Green
- Operating Temperature:-40°C ~ 110°C
- Contact Mating Finish:Tin
- Features:Mating Flange
