1982160000
Weidmuller
- Lifecycle status Active
- RoHS RoHS Compliant

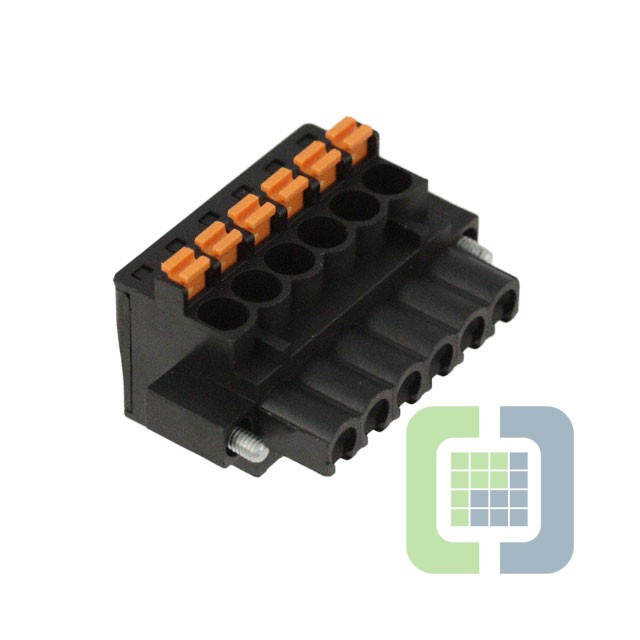

- DescriptionTERM BLOCK PLUG 6POS 5.08MM
- CategoryTerminal Blocks - Headers, Plugs and Sockets
- Datasheet 1982160000 Datasheet
-
ECAD Model
- Share
In Stock: 126
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:Omnimate BL
- Package:Box
- Part Status:Obsolete
- Type:Plug, Female Sockets
- Number of Positions:6
- Positions Per Level:6
- Number of Levels:1
- Pitch:0.200" (5.08mm)
- Header Orientation:-
- Plug Wire Entry:270°
- Termination Style:Screwless - Leg Spring, Push-In Spring
- Mounting Type:Free Hanging (In-Line)
- Current - IEC:24A
- Voltage - IEC:400 V
- Current - UL:18.5 A
- Voltage - UL:300 V
- Wire Gauge or Range - AWG:12-26 AWG
- Wire Gauge or Range - mm²:0.2-2.5mm²
- Color:Black
- Operating Temperature:-50°C ~ 100°C
- Contact Mating Finish:Tin
- Features:Mounting Flange, Retention Latches (Non-Wire Side)
