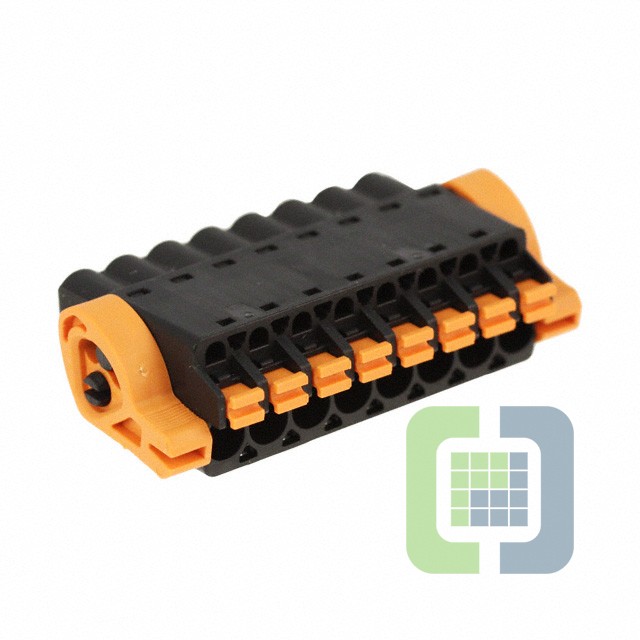

1014790000

Technical Details

• Series:Omnimate BL
• Package:Box
• Part Status:Obsolete
• Type:Plug, Female Sockets
• Number of Positions:8
• Positions Per Level:8
• Number of Levels:1
• Pitch:0.200" (5.08mm)
• Header Orientation:-
• Plug Wire Entry:180°
• Termination Style:Screwless - Leg Spring, Push-In Spring

• Mounting Type:Free Hanging (In-Line)
• Current - IEC:24A
• Voltage - IEC:400 V
• Current - UL:18.5 A
• Voltage - UL:300 V
• Wire Gauge or Range - AWG:12-26 AWG
• Wire Gauge or Range - mm²:0.2-2.5mm²
• Color:Black
• Operating Temperature:-50°C ~ 100°C
• Contact Mating Finish:Tin
• Features:Ejector Latches, Retention Latches (Non-Wire Side)
