1986300-7
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant

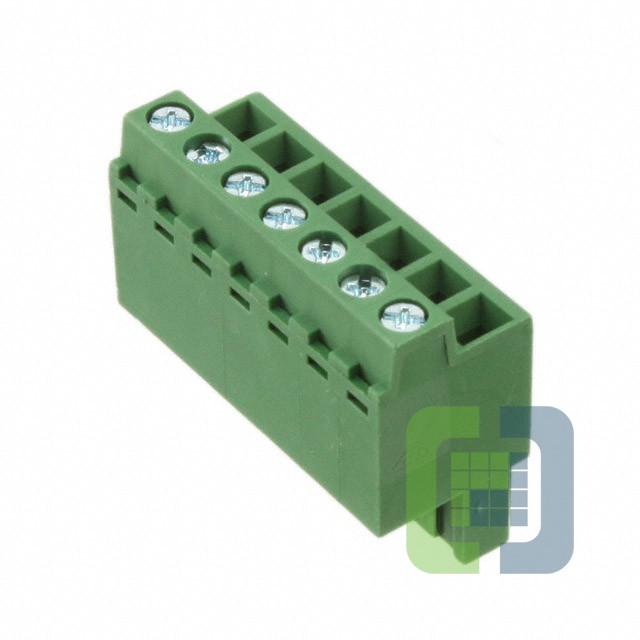

- DescriptionTERM BLOCK PLUG 7POS STR 5MM
- CategoryTerminal Blocks - Headers, Plugs and Sockets
- Datasheet 1986300-7 Datasheet
-
ECAD Model
- Share
In Stock: 128
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Obsolete
- Type:Plug, Female Sockets
- Number of Positions:7
- Positions Per Level:7
- Number of Levels:1
- Pitch:0.197" (5.00mm)
- Header Orientation:-
- Plug Wire Entry:180°
- Termination Style:Screw - Pressure Clip
- Mounting Type:Free Hanging (In-Line)
- Current - IEC:-
- Voltage - IEC:-
- Current - UL:16 A
- Voltage - UL:300 V
- Wire Gauge or Range - AWG:14-24 AWG
- Wire Gauge or Range - mm²:0.2-2mm²
- Color:Green
- Operating Temperature:-40°C ~ 105°C
- Contact Mating Finish:Tin
- Features:Retention Latches (Non-Wire Side)
