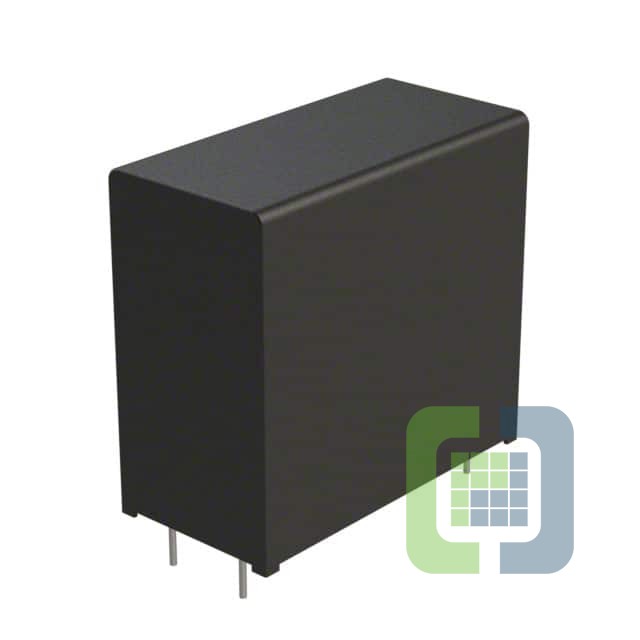

MKP1848H64580JY5
Vishay BC Components/Beyshlag/Draloric
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP FILM 45UF 5% 800VDC RADIAL
- CategoryFilm Capacitors
-
ECAD Model
- Share
In Stock: 106
Can ship immediately
Pricing:
- 1$15.65275
Quote It
Technical Details
- Series:MKP1848H
- Package:Tray
- Part Status:Active
- Capacitance:45 µF
- Tolerance:±5%
- Voltage Rating - AC:-
- Voltage Rating - DC:800V
- Dielectric Material:Polypropylene (PP), Metallized
- ESR (Equivalent Series Resistance):3.9 mOhms
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Through Hole
- Package / Case:Radial - 4 Leads
- Size / Dimension:2.264" L x 1.378" W (57.50mm x 35.00mm)
- Height - Seated (Max):2.008" (51.00mm)
- Termination:PC Pins
- Lead Spacing:2.067" (52.50mm)
- Applications:Automotive; DC Link, DC Filtering
- Ratings:AEC-Q200
- Features:85C/85% Humidity; Low ESR, Low ESL
