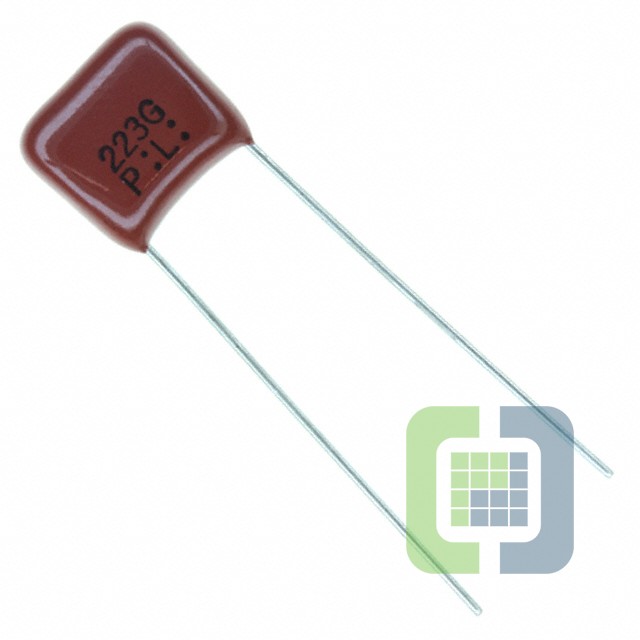

ECQ-P1H223GZ

Technical Details

• Series:ECQ-P(Z)
• Package:Bulk
• Part Status:Obsolete
• Capacitance:0.022 µF
• Tolerance:±2%
• Voltage Rating - AC:-
• Voltage Rating - DC:50V
• Dielectric Material:Polypropylene (PP)
• ESR (Equivalent Series Resistance):-
• Operating Temperature:-40°C ~ 85°C

• Mounting Type:Through Hole
• Package / Case:Radial
• Size / Dimension:0.472" L x 0.217" W (12.00mm x 5.50mm)
• Height - Seated (Max):0.610" (15.50mm)
• Termination:PC Pins
• Lead Spacing:0.197" (5.00mm)
• Applications:High Frequency, Switching
• Ratings:-
• Features:-
