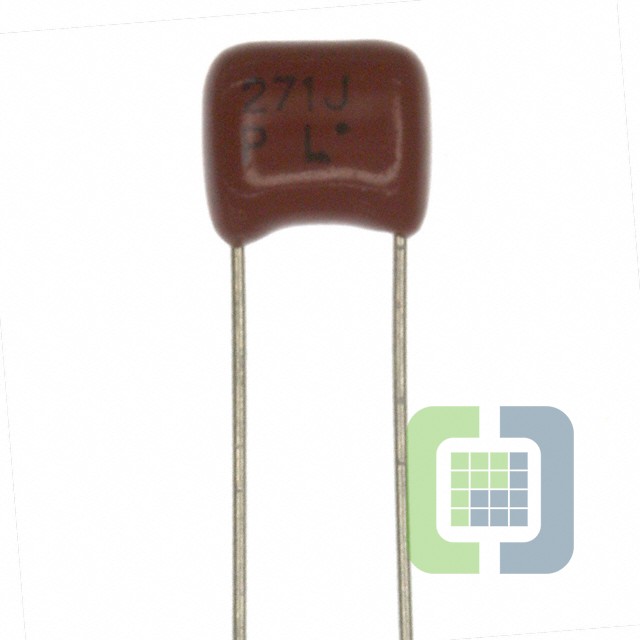

ECQ-P1H271JZ
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP FILM 270PF 5% 50VDC RADIAL
- CategoryFilm Capacitors
- Datasheet ECQ-P1H271JZ Datasheet
-
ECAD Model
- Share
In Stock: 120
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:ECQ-P(Z)
- Package:Bulk
- Part Status:Obsolete
- Capacitance:270 pF
- Tolerance:±5%
- Voltage Rating - AC:-
- Voltage Rating - DC:50V
- Dielectric Material:Polypropylene (PP)
- ESR (Equivalent Series Resistance):-
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Through Hole
- Package / Case:Radial
- Size / Dimension:0.335" L x 0.177" W (8.50mm x 4.50mm)
- Height - Seated (Max):0.492" (12.50mm)
- Termination:PC Pins
- Lead Spacing:0.197" (5.00mm)
- Applications:High Frequency, Switching
- Ratings:-
- Features:-
