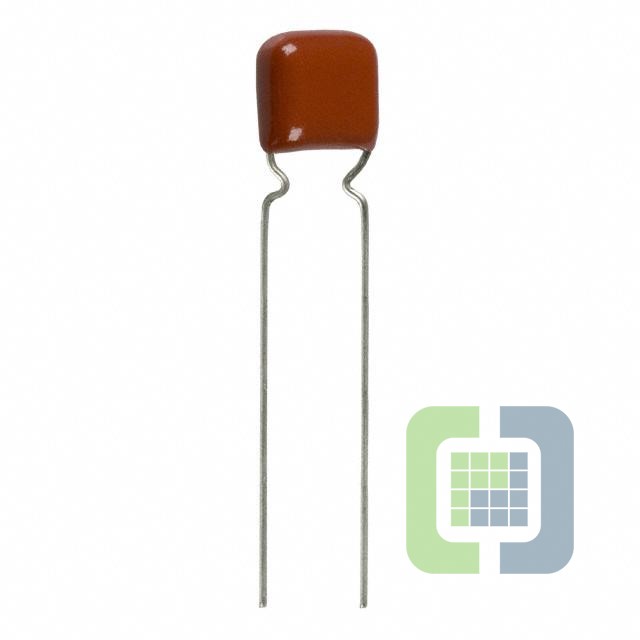

ECQ-V1H103JL3
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP FILM 10000PF 5% 50VDC RADIAL
- CategoryFilm Capacitors
- Datasheet ECQ-V1H103JL3 Datasheet
-
ECAD Model
- Share
In Stock: 110
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:ECQ-V
- Package:Tape & Box (TB)
- Part Status:Obsolete
- Capacitance:10000 pF
- Tolerance:±5%
- Voltage Rating - AC:-
- Voltage Rating - DC:50V
- Dielectric Material:Polyester, Metallized - Stacked
- ESR (Equivalent Series Resistance):-
- Operating Temperature:-40°C ~ 105°C
- Mounting Type:Through Hole
- Package / Case:Radial
- Size / Dimension:0.287" L x 0.126" W (7.30mm x 3.20mm)
- Height - Seated (Max):0.236" (6.00mm)
- Termination:PC Pins
- Lead Spacing:0.197" (5.00mm)
- Applications:General Purpose
- Ratings:-
- Features:-
