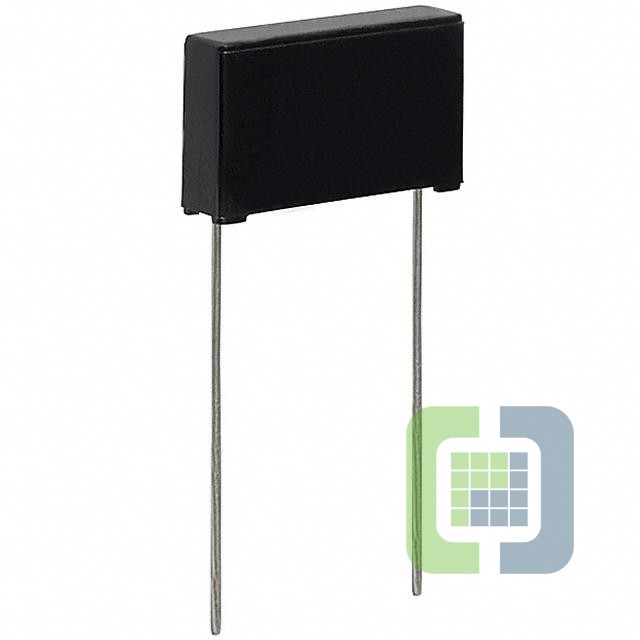

ECQ-U2A472MV
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP FILM 4700PF 20% 250VAC RAD
- CategoryFilm Capacitors
- Datasheet ECQ-U2A472MV Datasheet
-
ECAD Model
- Share
In Stock: 128
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:ECQ-UV
- Package:Bulk
- Part Status:Obsolete
- Capacitance:4700 pF
- Tolerance:±20%
- Voltage Rating - AC:250V
- Voltage Rating - DC:-
- Dielectric Material:Polyester, Metallized
- ESR (Equivalent Series Resistance):-
- Operating Temperature:-40°C ~ 85°C
- Mounting Type:Through Hole
- Package / Case:Radial
- Size / Dimension:0.689" L x 0.157" W (17.50mm x 4.00mm)
- Height - Seated (Max):0.433" (11.00mm)
- Termination:PC Pins
- Lead Spacing:0.591" (15.00mm)
- Applications:EMI, RFI Suppression
- Ratings:X2
- Features:-
