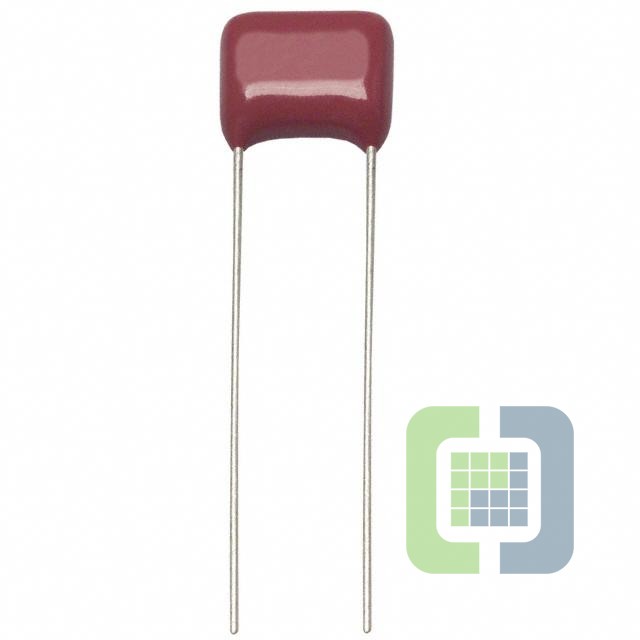

ECH-S1223JZ
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP FILM 0.022UF 5% 100VDC RAD
- CategoryFilm Capacitors
- Datasheet ECH-S1223JZ Datasheet
-
ECAD Model
- Share
In Stock: 159
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:ECHS(Z)
- Package:Bulk
- Part Status:Obsolete
- Capacitance:0.022 µF
- Tolerance:±5%
- Voltage Rating - AC:-
- Voltage Rating - DC:100V
- Dielectric Material:Polyphenylene Sulfide (PPS)
- ESR (Equivalent Series Resistance):-
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Through Hole
- Package / Case:Radial
- Size / Dimension:0.472" L x 0.197" W (12.00mm x 5.00mm)
- Height - Seated (Max):0.465" (11.80mm)
- Termination:PC Pins
- Lead Spacing:0.295" (7.50mm)
- Applications:High Frequency, Switching
- Ratings:-
- Features:-
