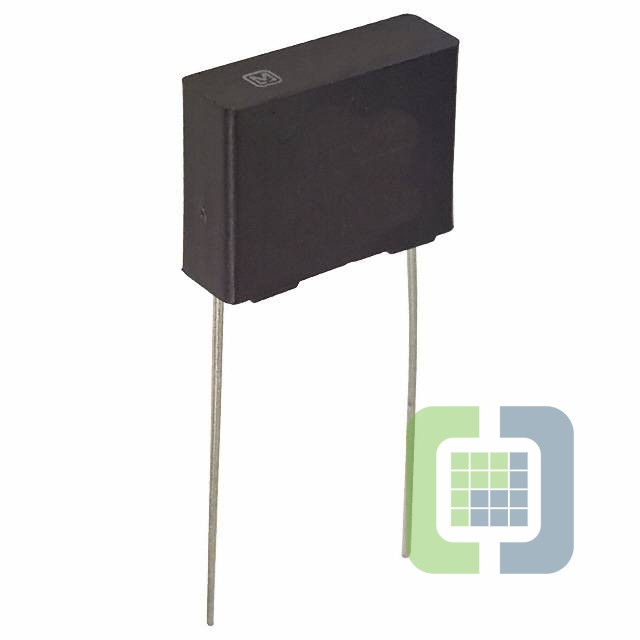

ECQ-U2A223ML
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP FILM 0.022UF 20% 275VAC RAD
- CategoryFilm Capacitors
- Datasheet ECQ-U2A223ML Datasheet
-
ECAD Model
- Share
In Stock: 107
Can ship immediately
Pricing:
- 1$0.47
- 10$0.32998
- 100$0.20367
- 500$0.15626
- 1,000$0.1341
- 2,500$0.12777
- 5,000$0.12145
Quote It
Technical Details
- Series:ECQ-UL
- Package:Bulk
- Part Status:Obsolete
- Capacitance:0.022 µF
- Tolerance:±20%
- Voltage Rating - AC:275V
- Voltage Rating - DC:-
- Dielectric Material:Polyester, Metallized
- ESR (Equivalent Series Resistance):-
- Operating Temperature:-40°C ~ 100°C
- Mounting Type:Through Hole
- Package / Case:Radial
- Size / Dimension:0.591" L x 0.197" W (15.00mm x 5.00mm)
- Height - Seated (Max):0.472" (12.00mm)
- Termination:PC Pins
- Lead Spacing:0.492" (12.50mm)
- Applications:EMI, RFI Suppression
- Ratings:X2
- Features:-
