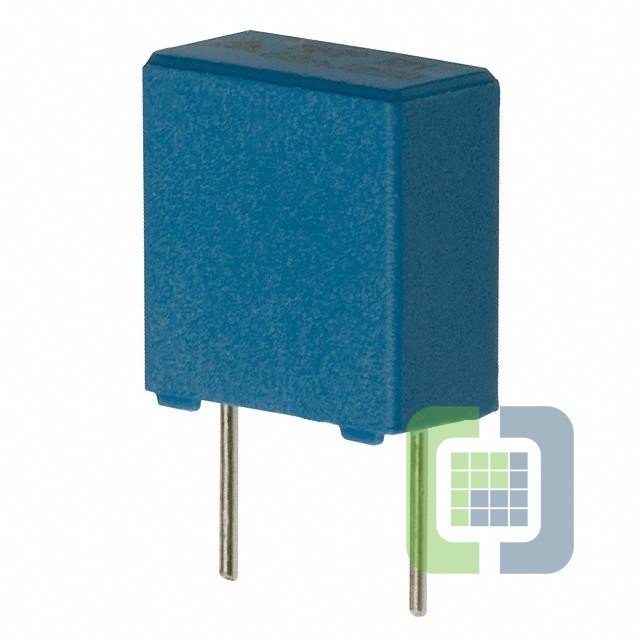

B32620J681J289

Technical Details

• Series:B32620
• Package:Tape & Box (TB)
• Part Status:Obsolete
• Capacitance:680 pF
• Tolerance:±5%
• Voltage Rating - AC:600V
• Voltage Rating - DC:1000V (1kV)
• Dielectric Material:Polypropylene (PP), Metallized - Stacked
• ESR (Equivalent Series Resistance):-
• Operating Temperature:-55°C ~ 105°C

• Mounting Type:Through Hole
• Package / Case:Radial
• Size / Dimension:0.394" L x 0.197" W (10.00mm x 5.00mm)
• Height - Seated (Max):0.413" (10.50mm)
• Termination:PC Pins
• Lead Spacing:0.295" (7.50mm)
• Applications:High Pulse, DV/DT
• Ratings:-
• Features:-
