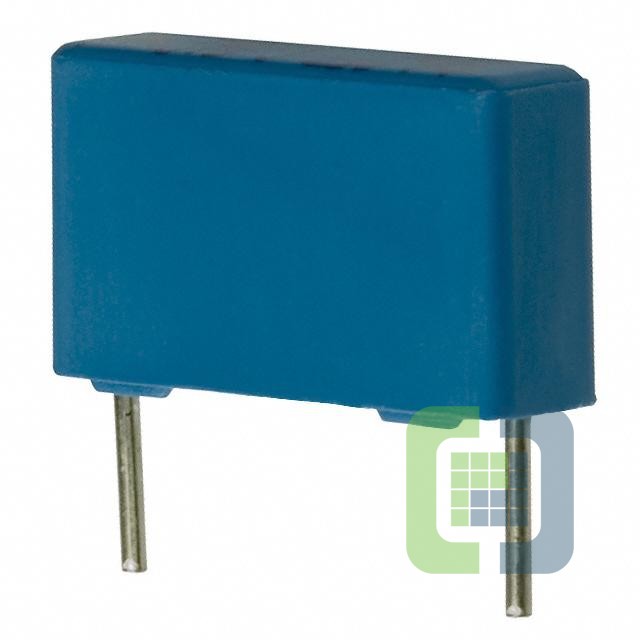

B32652A3154J289

Technical Details

• Series:B32652
• Package:Tape & Box (TB)
• Part Status:Active
• Capacitance:0.15 µF
• Tolerance:±5%
• Voltage Rating - AC:160V
• Voltage Rating - DC:250V
• Dielectric Material:Polypropylene (PP), Metallized
• ESR (Equivalent Series Resistance):-
• Operating Temperature:-55°C ~ 100°C

• Mounting Type:Through Hole
• Package / Case:Radial
• Size / Dimension:0.709" L x 0.197" W (18.00mm x 5.00mm)
• Height - Seated (Max):0.413" (10.50mm)
• Termination:PC Pins
• Lead Spacing:0.591" (15.00mm)
• Applications:Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber
• Ratings:AEC-Q200
• Features:-
