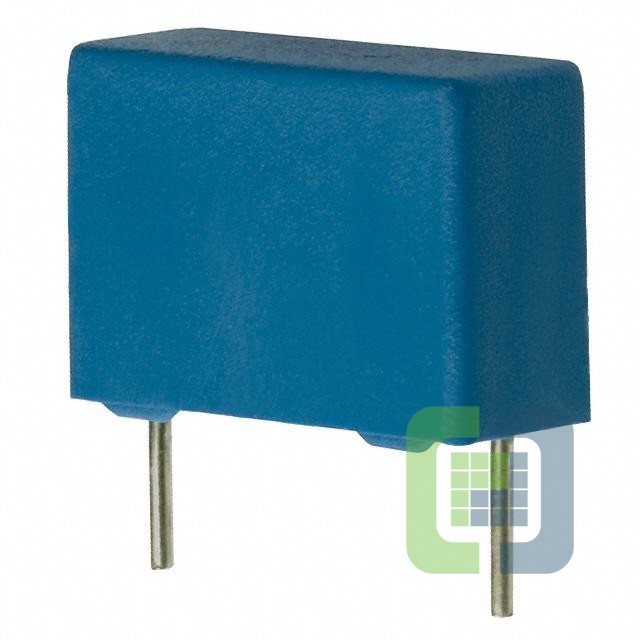

B32652A7153K000

Technical Details

• Series:B32652
• Package:Bulk
• Part Status:Active
• Capacitance:0.015 µF
• Tolerance:±10%
• Voltage Rating - AC:500V
• Voltage Rating - DC:1250V (1.25kV)
• Dielectric Material:Polypropylene (PP), Metallized
• ESR (Equivalent Series Resistance):-
• Operating Temperature:-55°C ~ 100°C

• Mounting Type:Through Hole
• Package / Case:Radial
• Size / Dimension:0.709" L x 0.276" W (18.00mm x 7.00mm)
• Height - Seated (Max):0.492" (12.50mm)
• Termination:PC Pins
• Lead Spacing:0.591" (15.00mm)
• Applications:Automotive; DC Link, DC Filtering; High Pulse, DV/DT; Snubber
• Ratings:AEC-Q200
• Features:-
