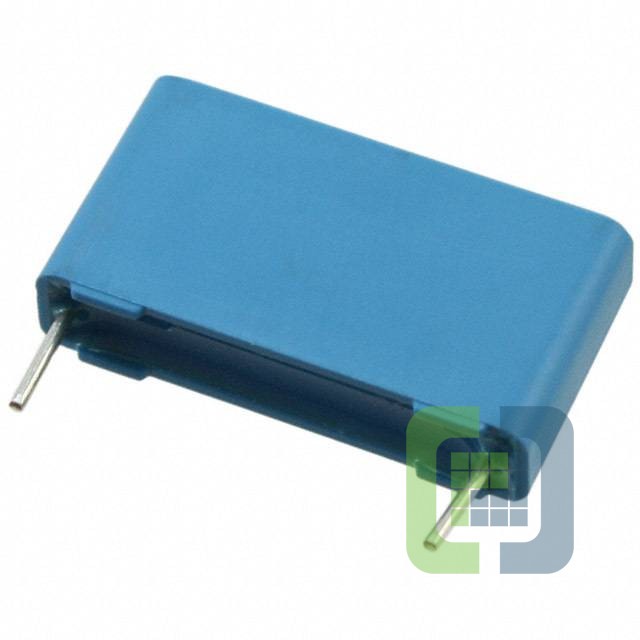

B32653A3224K000

Technical Details

• Series:B32653
• Package:Bulk
• Part Status:Active
• Capacitance:0.22 µF
• Tolerance:±10%
• Voltage Rating - AC:160V
• Voltage Rating - DC:250V
• Dielectric Material:Polypropylene (PP), Metallized
• ESR (Equivalent Series Resistance):-
• Operating Temperature:-55°C ~ 100°C

• Mounting Type:Through Hole
• Package / Case:Radial
• Size / Dimension:1.043" L x 0.236" W (26.50mm x 6.00mm)
• Height - Seated (Max):0.591" (15.00mm)
• Termination:PC Pins
• Lead Spacing:0.886" (22.50mm)
• Applications:DC Link, DC Filtering; High Pulse, DV/DT
• Ratings:AEC-Q200
• Features:-
