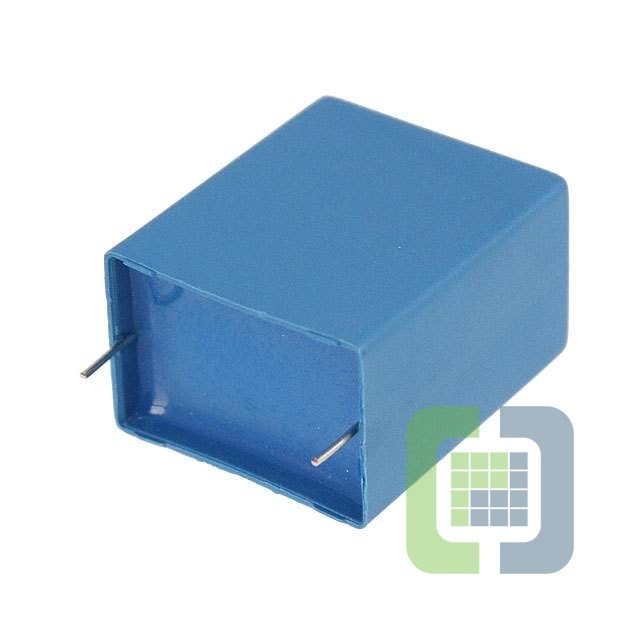

B32796E4106K

Technical Details

• Series:B32796
• Package:Bulk
• Part Status:Obsolete
• Capacitance:10 µF
• Tolerance:±10%
• Voltage Rating - AC:400V
• Voltage Rating - DC:1050V (1.05kV)
• Dielectric Material:Polypropylene (PP), Metallized
• ESR (Equivalent Series Resistance):4.5 mOhms
• Operating Temperature:-40°C ~ 85°C

• Mounting Type:Through Hole
• Package / Case:Radial
• Size / Dimension:1.654" L x 1.102" W (42.00mm x 28.00mm)
• Height - Seated (Max):1.457" (37.00mm)
• Termination:PC Pins
• Lead Spacing:1.476" (37.50mm)
• Applications:DC Link, DC Filtering; EMI, RFI Suppression
• Ratings:-
• Features:-
