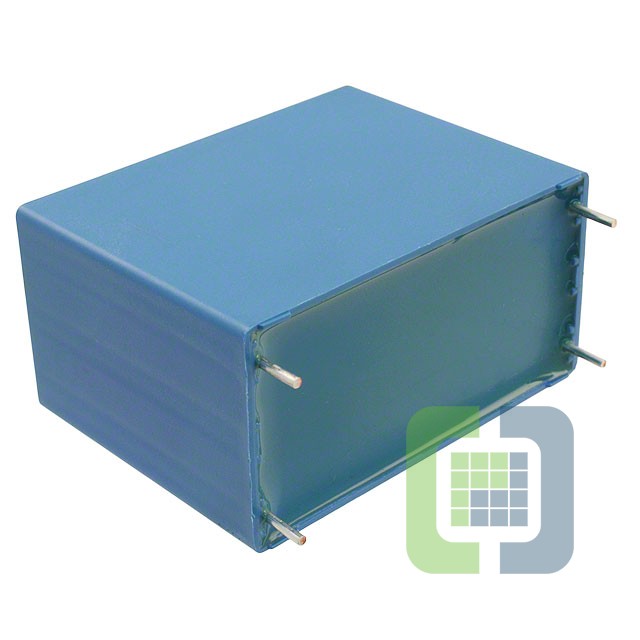

B32798G4186K

Technical Details

• Series:B32798
• Package:Bulk
• Part Status:Obsolete
• Capacitance:18 µF
• Tolerance:±10%
• Voltage Rating - AC:400V
• Voltage Rating - DC:1050V (1.05kV)
• Dielectric Material:Polypropylene (PP), Metallized
• ESR (Equivalent Series Resistance):4.7 mOhms
• Operating Temperature:-40°C ~ 85°C

• Mounting Type:Through Hole
• Package / Case:Radial
• Size / Dimension:2.264" L x 1.181" W (57.50mm x 30.00mm)
• Height - Seated (Max):1.772" (45.00mm)
• Termination:PC Pins
• Lead Spacing:2.067" (52.50mm)
• Applications:DC Link, DC Filtering; EMI, RFI Suppression
• Ratings:-
• Features:-
