RCLAMP0524T.TCT

Semtech
In Stock: 117

Can ship immediately

Pricing:
  • 1$0.4774
  • 3,000$0.4774

Quote It

Technical Details

  • Series:RailClamp®
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Type:Steering (Rail to Rail)
  • Unidirectional Channels:4
  • Bidirectional Channels:-
  • Voltage - Reverse Standoff (Typ):5V (Max)
  • Voltage - Breakdown (Min):6V
  • Voltage - Clamping (Max) @ Ipp:15V



  • Current - Peak Pulse (10/1000µs):5A (8/20µs)
  • Power - Peak Pulse:150W
  • Power Line Protection:Yes
  • Applications:HDMI
  • Capacitance @ Frequency:0.8pF @ 1MHz
  • Operating Temperature:-55°C ~ 125°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:10-XFDFN
  • Supplier Device Package:SLP2510P8T

Related Products


SM15T24CAY

TVS DIODE 20.5V 42.8V SMC

SM15T24CAY Datasheet
  • 1: $0.46025
  • 2500: $0.38661

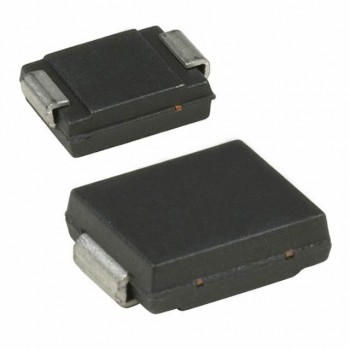

SM15T47CAY

TVS DIODE 40.2V 84V SMC

SM15T47CAY Datasheet
  • 1: $0.46025
  • 2500: $0.38661

1.5KE220A-B

TVS DIODE 185V 328V DO201

1.5KE220A-B Datasheet
  • 1: $0.48430
  • 500: $0.48430

1.5KE6V8A-B

TVS DIODE 5.8V 10.5V DO201

1.5KE6V8A-B Datasheet
  • 1: $0.48430
  • 1000: $0.44656

1.5KE7V5A-B

TVS DIODE 6.4V 11.3V DO201

1.5KE7V5A-B Datasheet
  • 1: $0.48430
  • 1000: $0.44656

1.5KE8V2A-B

TVS DIODE 7.02V 12.1V DO201

1.5KE8V2A-B Datasheet
  • 1: $0.48430
  • 1000: $0.44656

1.5KE9V1A-B

TVS DIODE 7.78V 13.4V DO201

1.5KE9V1A-B Datasheet
  • 1: $0.48430
  • 1000: $0.44656

1.5KE8.2A R0G

TVS DIODE 7.02V 12.1V DO201

  • 1: $0.47850
  • 1250: $0.47850

1.5KE82A R0G

TVS DIODE 70.1V 113V DO201

  • 1: $0.47850
  • 1250: $0.47850

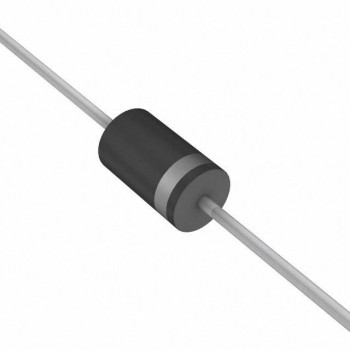

1.5KE9.1A R0G
