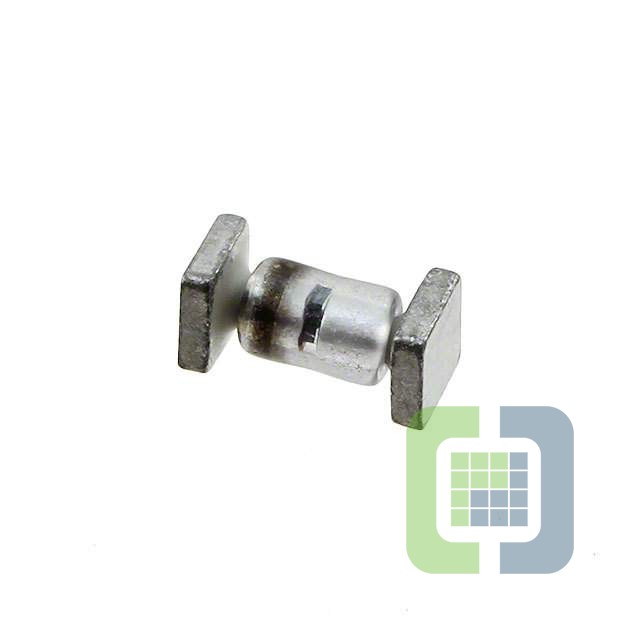

1N6109US
Microchip Technology
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionTVS DIODE 9.9V 19.11V B SQ-MELF
- CategoryTVS - Diodes
- Datasheet 1N6109US Datasheet
-
ECAD Model
- Share
In Stock: 141
Can ship immediately
Pricing:
- 1$10.92
- 250$10.66848
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Type:Zener
- Unidirectional Channels:-
- Bidirectional Channels:1
- Voltage - Reverse Standoff (Typ):9.9V
- Voltage - Breakdown (Min):11.73V
- Voltage - Clamping (Max) @ Ipp:19.11V
- Current - Peak Pulse (10/1000µs):26.13A
- Power - Peak Pulse:500W
- Power Line Protection:No
- Applications:General Purpose
- Capacitance @ Frequency:-
- Operating Temperature:-55°C ~ 175°C (TJ)
- Mounting Type:Surface Mount
- Package / Case:SQ-MELF, B
- Supplier Device Package:B, SQ-MELF
